Ultrasonic frequency: 10MHz

Display resolution: 0.01mm

Total gain of receiver: ≥100dB

Adjustable gain scope: 0～50dB

Measuring scope (AL): 15 mm～40mm

Measuring accuracy: ≤±0.05mm

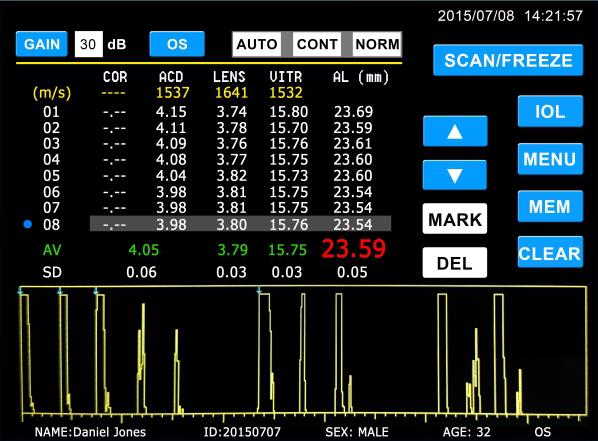

Measuring Parameter: ACD, LENS, VITR and AL

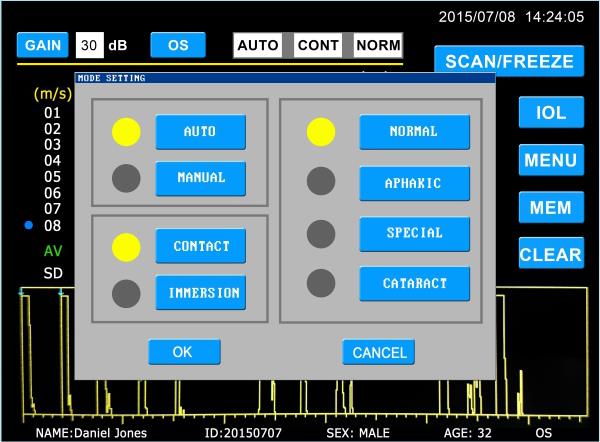

Measuring mode: automatic mode or manual mode can be selectable.

                             Automatic mode for Normal, Cataract and Aphakic mode;

Measuring method: contact and immersion, can be selectable;

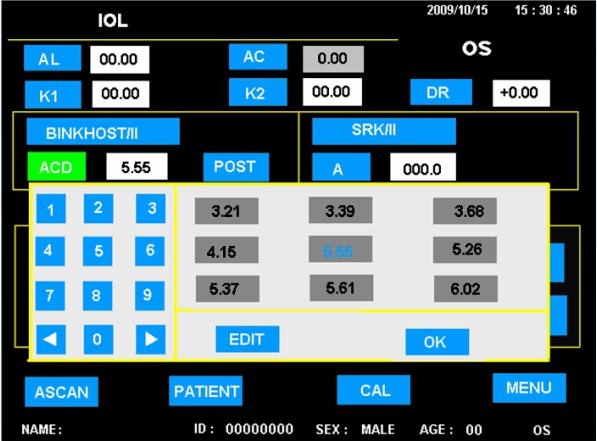

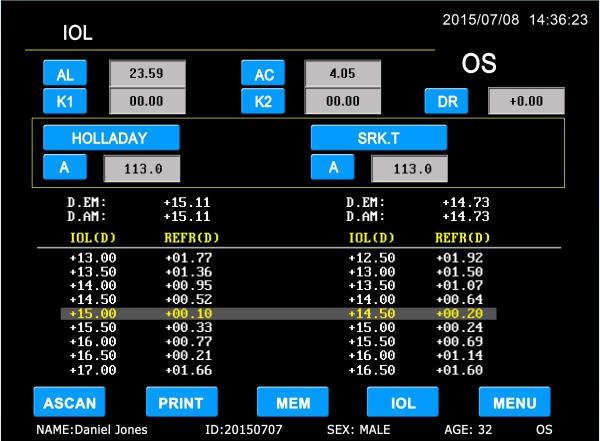

IOL calculation: SRK/T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS and IOL calculation

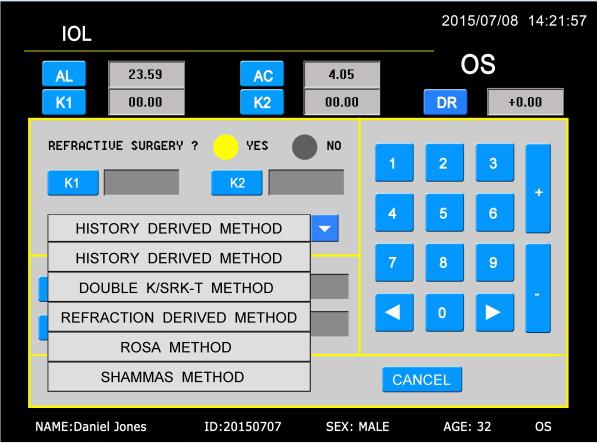

formula after corneal refractive surgery: HISTORY DERIVED, DOUBLE-K/SRK-T, REFRACTION DERIVED, ROSA and SHAMMAS.
