• High Definition 10MHz & 20MHz B-scan image

  • High Resolution LCD touch screen

  • Image/video snapped and stored in real time in multiple buffer slots for immediate comparison and review

  • Multiple TGC options for operator’s preference including vitreous-enhanced mode

  • Editable clinical report with A-scan/IOL results, B-scan images and textual comments with configurable entries

  • Reports in .PDF format for sharing and print-out

  • Compatbility with graph/text printer

  • Diverse connections via HDMI and USB 2.0 ports

  • HDMI interface for double-screen showcase

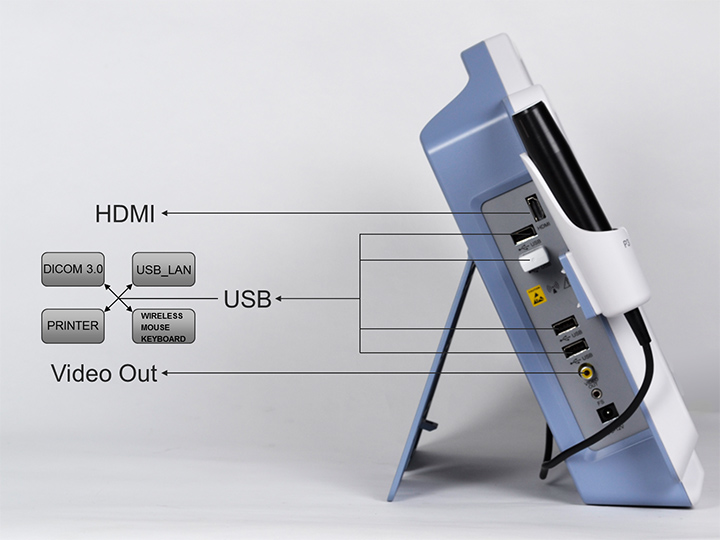

Powerful Interfaces

Compatible with USB-driven devices

Showcase by HDMI

Video printer & graph/text printer supported

Ethernet & Wifi available

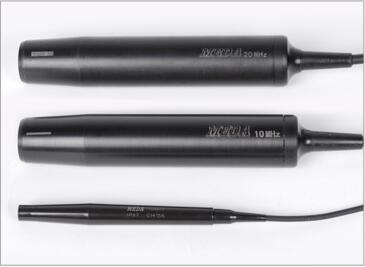

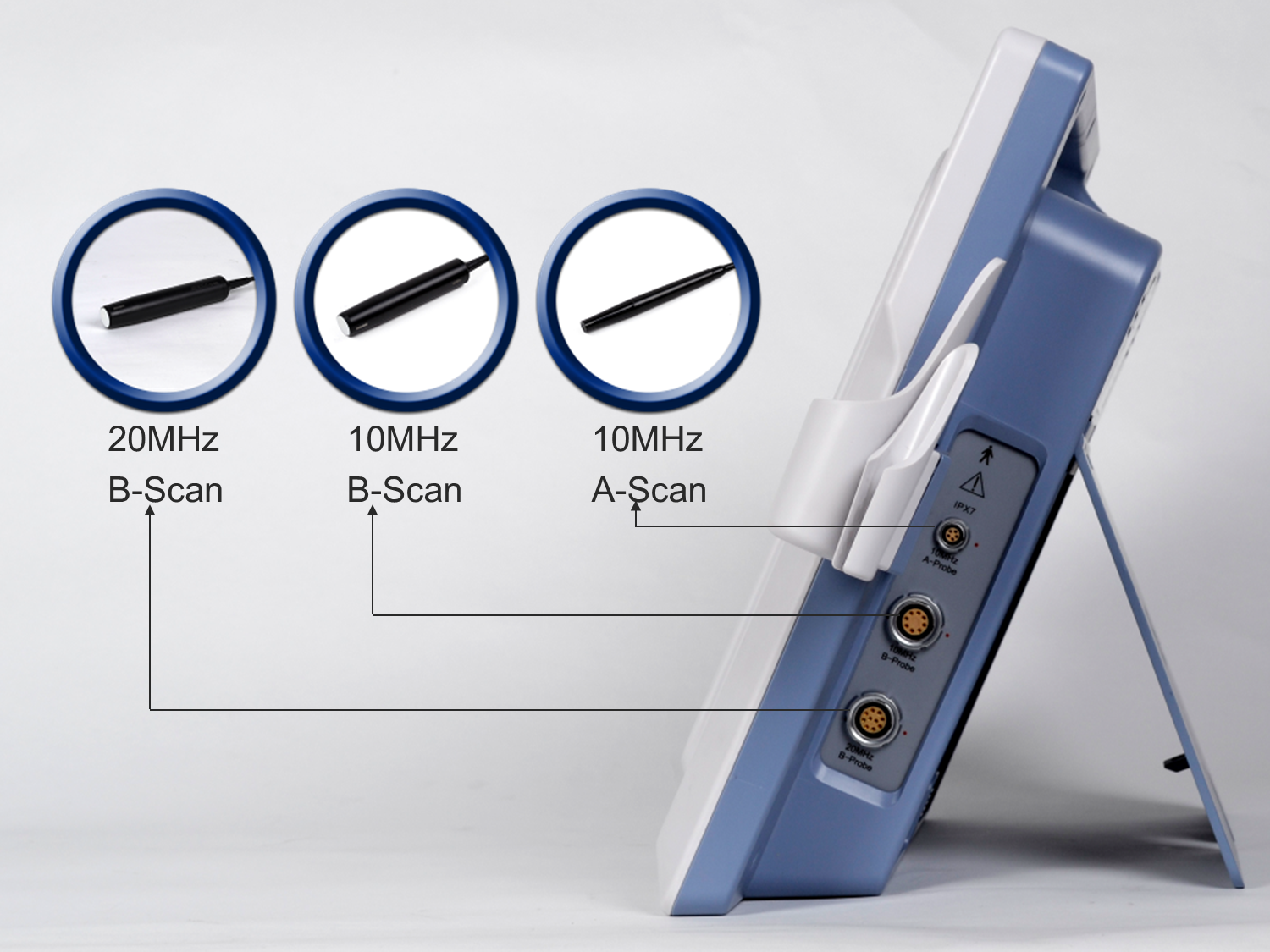

Multi-probe Connectivity

High resolution 20MHz B-probe available

Budget-concerned, probes upgradeable in the future

General platform, probes plug to go

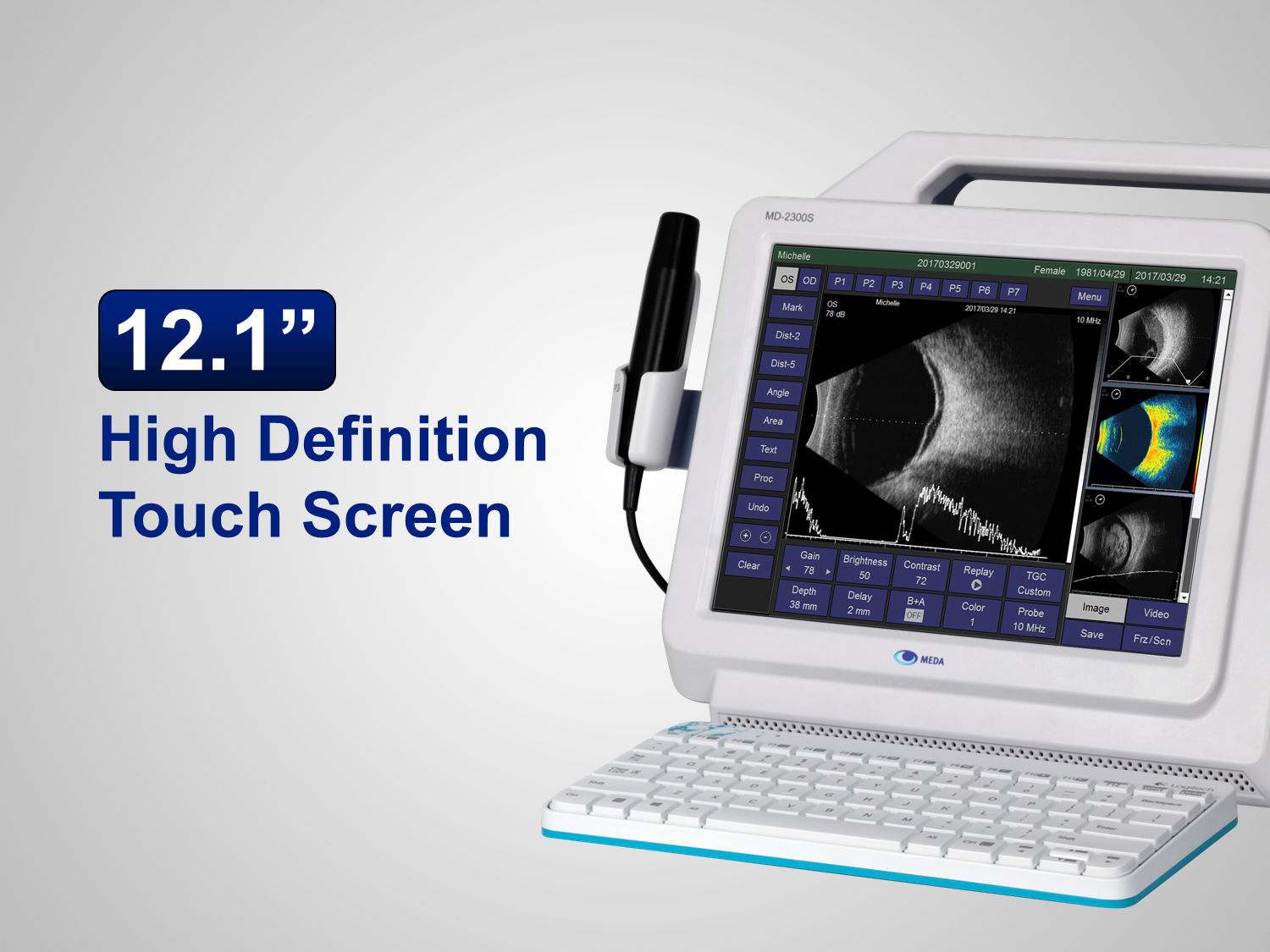

High Definition Screen

12.1'' High Definition LCD screen

Fully-operatable touch screen,

Examinations through finger touch

Ergonomical industrial design, free operators from fatigue

We can tell you more

Innovative 20MHz B-probe technology

for posterior examination

High resolution in micronmeter

No compromise in single detail

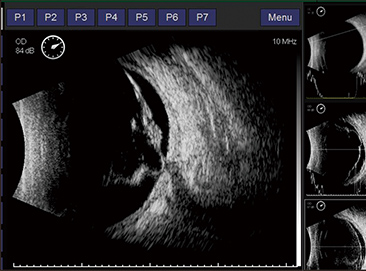

Enhanced Visibility and User-friendliness

Image/video buffer slots for immediate click-and-check,
review and comparison Images/videos captured in real time
and saved in lossless format (.bmp & .avi).

Zooming and scan depth adjustment for better ocular disease observation.
Vitreous-Enhanced Mode improves

visibility at vitreous body.

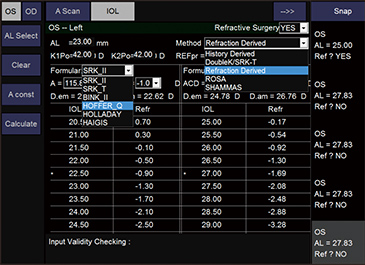

A-Scan & IOL Calculation

Biometry buffer slots for

immediate click-and-check, review and comparison.

Improved accuracy and reliability with
Average and Standard Deviation

for up to 10 scans per exam.

6 popular IOL formulae and
5 Post-refractive IOL formulae available.

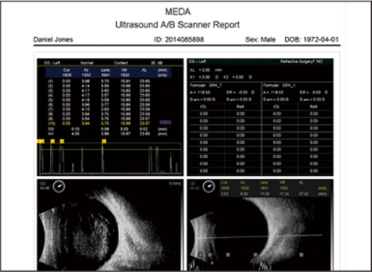

Full Reporting Capabilities

Full report integrating A-scan/IOL results,
B-scan images and doctor's comments
with customized dictionary of symptom entries

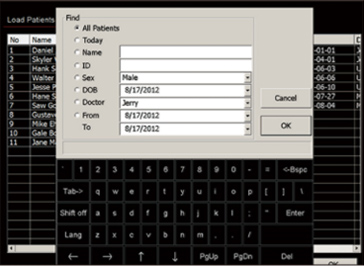

Comprehensive Data Archiving and Management

Simple UI allows users to load, search, print, etc.

Unlimited storage capacity for over 20,000 exams

 (8 lossless images per exam).



Ultrasound Probes: 10MHz B-Scan Probe; new 20MHz B-Scan Probe

Detection Depth: 10MHz: ≥60mm; 20MHz: ≥20mm

Axial Resolution: 10MHz: ≤0.1mm; 20MHz: ≤0.08mm

Lateral Resolution: 10MHz: ≤0.2mm; 20MHz: ≤0.15mm

Scan Depth: 10MHz: 34mm-60mm, 6-Level selectable; 20MHz: 22mm-40mm, 6-Level selectable

Scan Angle: 53°

Cineloop & Image: Capture and store up to 10s cineloop; Replay in real time, images displayed continually or separately; Separately save individual frames from   cineloop as an image

Gray Scale: 256 Levels

Gain: 1-105dB adjustable

TGC: Default, Vitreous-Enhanced Mode & Customized

AL Measurement: 5-Point “Dict-5” Marking Method under B+A Mode

Post-processing: Measurement (Angle, Area, Distance); Text Annotation & Image Magnification



Ultrasound Probe: 10MHz with Fixation Red Light

Gain: 1-60dB

Measurement Method: Contact or Immersion

Measurement Mode:  Manual or Automatic (Normal, Aphakic, Special and Cataract)

Measurements parameter: Axial Length (AL), and Anterior Chamber Depth (AC), Lens Thickness (LEN), Vitreous Body Length (VITR),

Average and Standard Deviation for up to 10 scans per exam

Configurable Tissue Velocities under Special or Manual mode

AL Measuring Range: 15mm-40mm

AL Measuring Accuracy: ≤±0.05mm


Post-Refractive: History-derived, Refraction-derived, SHAMMAS, Double K/SRK-T and ROSA


Display: High-Resolution 12.1” LCD Touch Screen

Printer: Graph/Text Printer and Video Printer (PAL)

Interface: Video-Out (PAL), HDMI, USB2.0 Ports, DICOM 3.0

Input: Touch Screen, Footswitch, Wireless Mouse & Keyboard

HDD: 320GB or higher

Power Supply: AC 100-240V, 50/60Hz

Options: 20MHz B Probe; Eye cup; Immersion Shell;  Trolley; Video Printer abd Graph/text Printer


  • Lens Dislocation

  • Posterior Vitreous Detachment

  • Vitreous Hemorrhage

  • Vitreous Degeneration


  • Vitreous Hemorrhage

  • Vitreous Hemorrhage

  • Retinal Perforation

  • Fundus Tumor
